Main Functions
- Adopts three detection technologies: smoke, temperature and temperature rise detection.
- Adopts Cat.1 full-network communication mode.
- Powered by high-performance CR123A lithium battery.

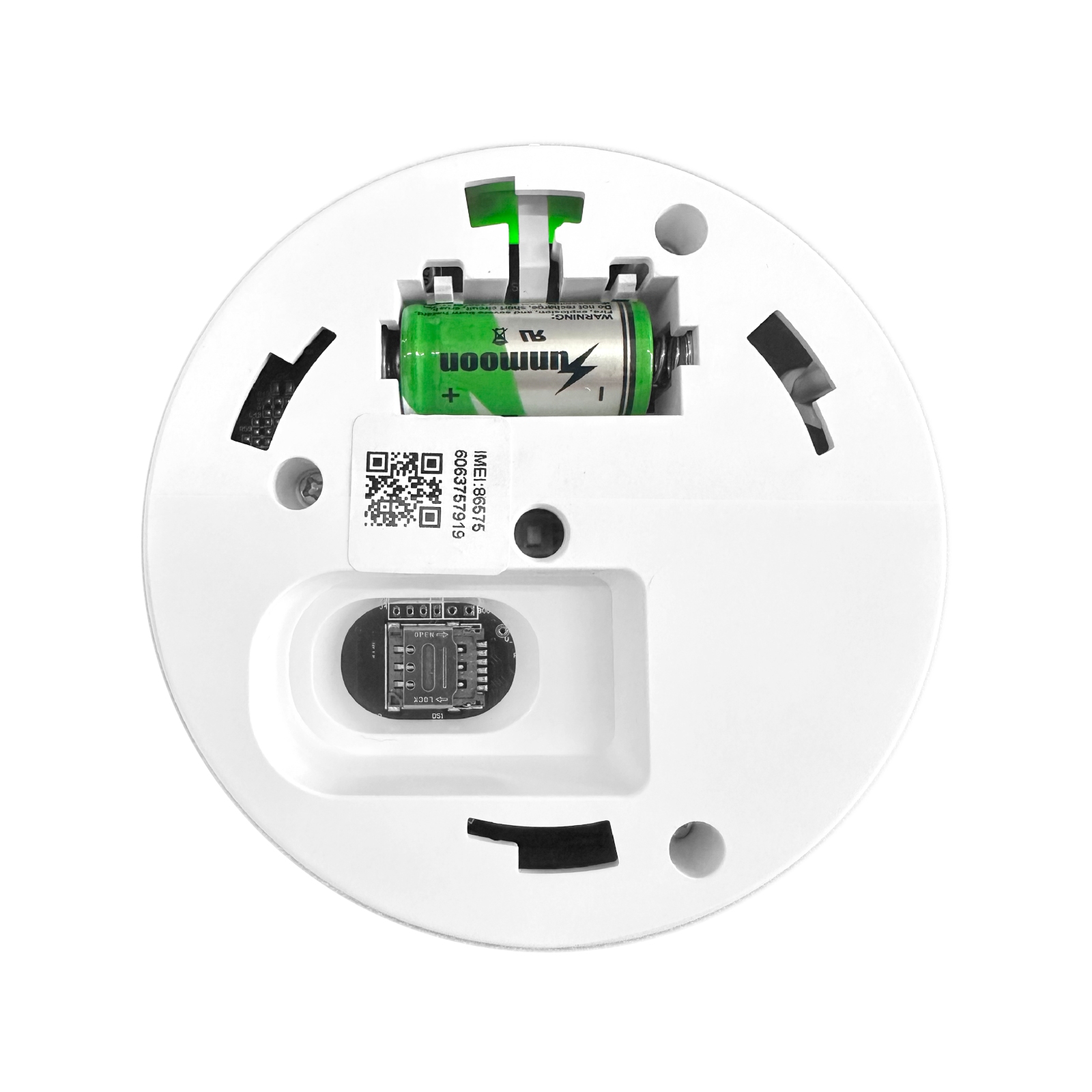

- Built-in pluggable card design for easy replacement at any time.
- Supports smoke concentration display function.
- Supports adaptive sensitivity adjustment, which automatically adjusts the product sensitivity according to environmental noise.
- Clear working indication function: equipped with signal strength indication, signal transmission indication and various product operation status indication functions.
- Powerful self-test function: with module fault detection, Cat.1 card fault detection, signal transmission failure detection, platform communication fault detection and other self-test functions.
- Flexible cloud platform configuration function: remote setting of various product functions via the cloud platform.
- Supports remote battery level reporting function.
- Supports remote setting of heartbeat interval.
- Supports remote mute function.
- Supports anti-tamper alarm function.
- Supports low-voltage alarm function.
- Obtained the 3C certification from the Fire Product Conformity Assessment Center of the Ministry of Emergency Management.
- Equipped with the test report issued by the National Fire Electronic Products Quality Inspection and Testing Center.
Technical Parameters
Communication Mode: Cat.1 Communication
Low-voltage Alarm Threshold: DC 2.7V
Working Voltage: DC 3V
Quiescent Current: ≤10uA
Battery Specification: CR123A Lithium Battery
Alarm Temperature: ＞57℃ (Remotely Configurable)
Alarm Temperature Rise: ＞7℃/min (Remotely Configurable)
Working Temperature: -10~+55℃
Working Humidity: ＜95%RH
Overall Dimension: Ф105*51.3mm
Installation Method: Ceiling-mounted
