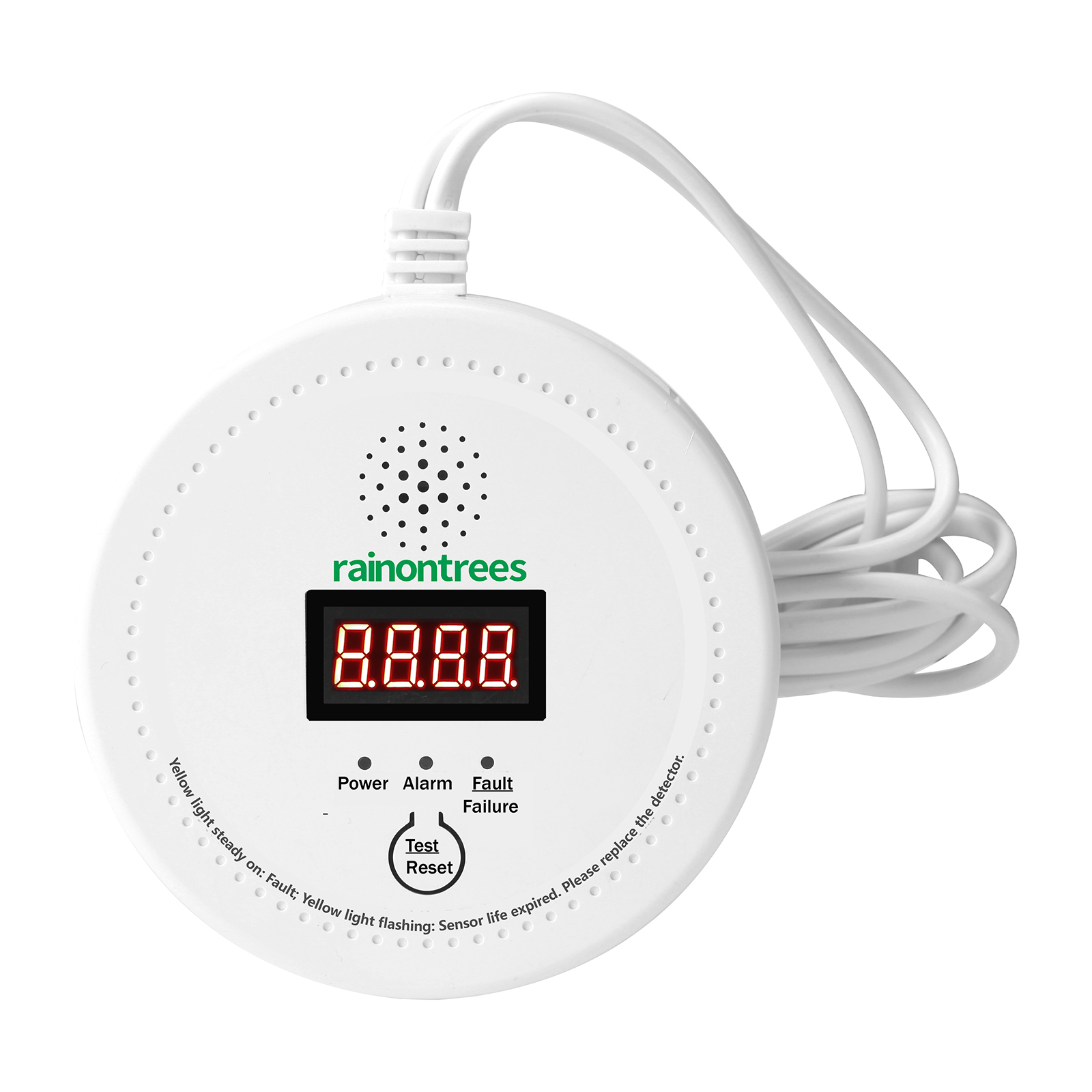

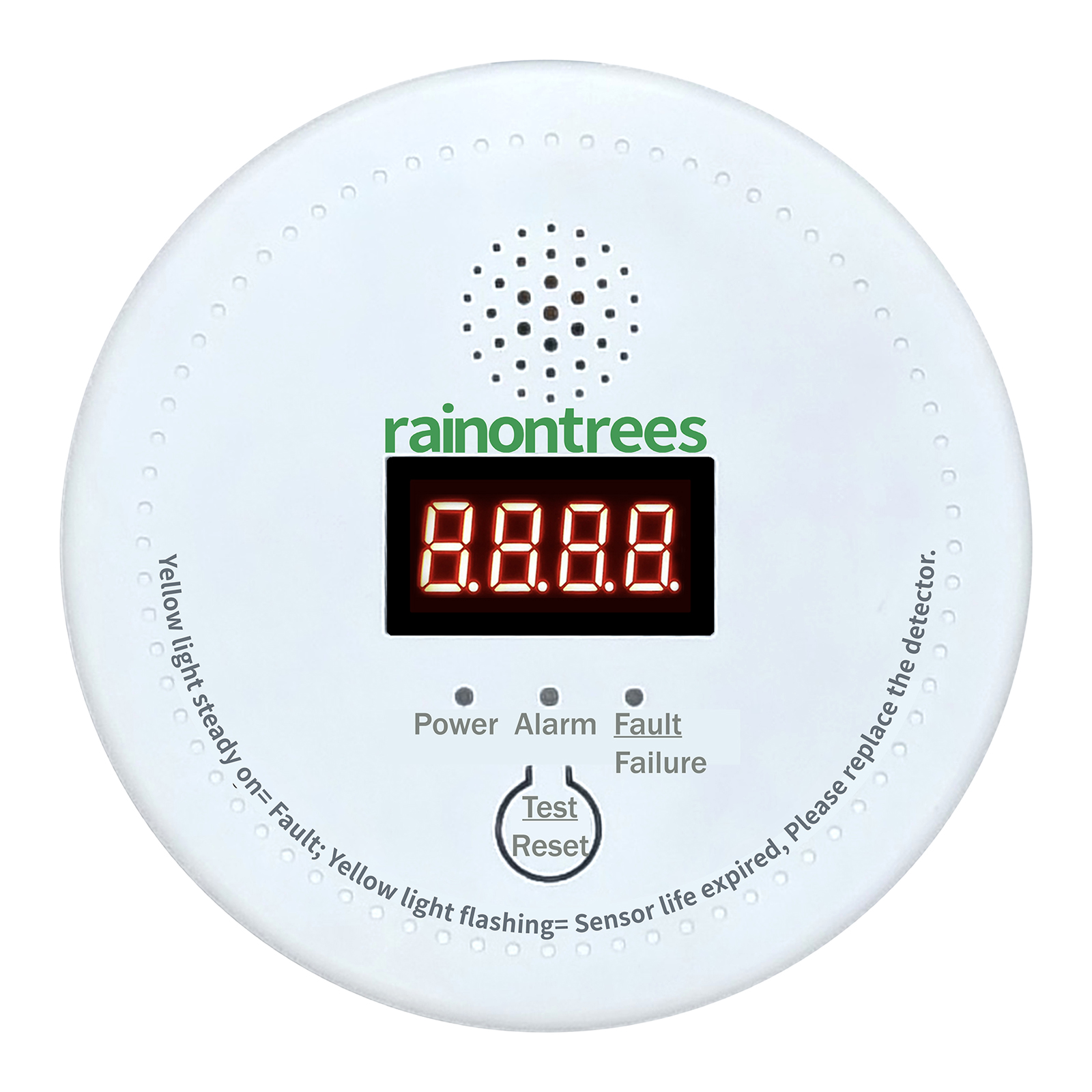

Overview
Carbon monoxide is produced when carbon-containing substances such as coal, petroleum, and wood are burned under insufficient oxygen supply. For example, incomplete combustion in household heating equipment, kitchen stoves, industrial coal-fired processes, etc., will generate carbon monoxide.
Carbon monoxide is a toxic gas. When its concentration exceeds a certain level, it will cause serious harm to human health. This product can monitor the concentration of carbon monoxide in the air and give an alarm in a timely manner when the concentration exceeds the limit, so as to take preventive measures in advance.
Main Functions
- Communication mode: Cat.1 full Netcom communication.
- Built-in plug-in card for easy replacement.
- Clear working indication: signal strength indication, signal transmission indication, and various operation status indications of the product.
- Powerful self-test function: module fault detection, Cat.1 card fault detection, signal transmission failure detection, platform communication fault detection, etc.
- Flexible cloud platform configuration: remote setting of various product functions via cloud platform.
- Compatible with both ceiling-mounted and wall-mounted installation.
- Equipped with clock function and data memory function.
- Equipped with data export interface.
- 1-channel relay output.
- With test report issued by National Quality Inspection and Testing Center for Fire Electronic Products.
- With fire product certification issued by Certification Center for Fire Products, Ministry of Emergency Management.
Technical Parameters
- Communication mode: Cat.1 full Netcom
- Detected gas: Carbon Monoxide (CO)
- Alarm concentration: 200×10⁻⁶(volume fraction)
- Measuring range: 0–500×10⁻⁶(volume fraction)
- Operating temperature: -10 ~ +55 ℃
- Installation: Ceiling-mounted / Wall-mounted
- Dimensions: Φ104 × 7 mm
- Power consumption: ≤2W (normal monitoring); ≤3W (alarm status)
- Operating voltage: AC 220V/50Hz
- Alarm sound level: >70dB (at 1 meter directly in front)
- Sampling method: Natural diffusion
- Operating humidity: ≤95%RH (non-condensing)
- Driving capacity: AC 220V/3A or DC 30V/3A (relay normally open output)
- Sensor service life: 3 years
- Executive standard: GB 15322.2-2019
