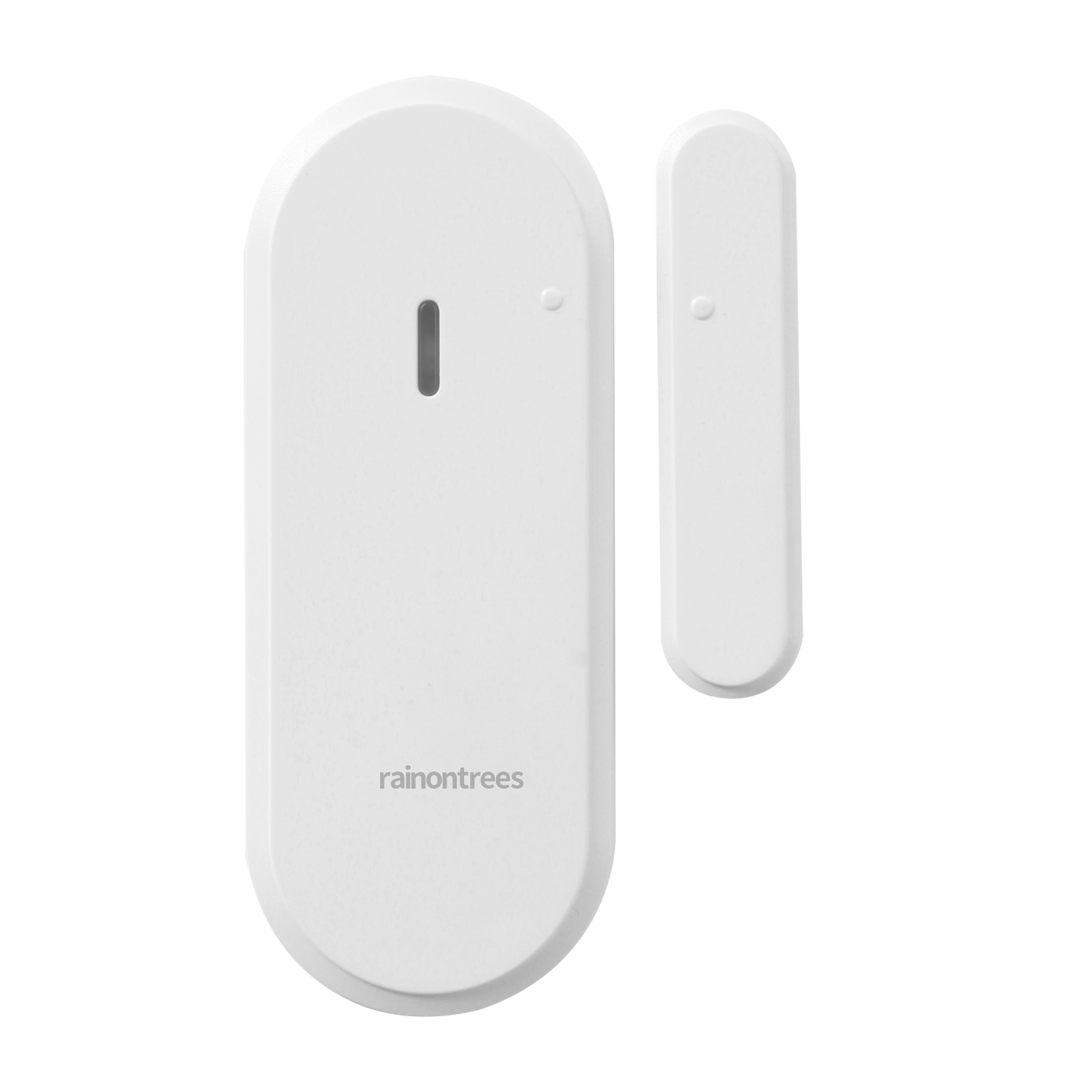

Magnetic Switch Intrusion Detector RT-M12-A433

This wireless door contact uses magnetic control principle and is suitable for doors, windows and other applications.

It sends on-site alarm or status signals to the control host wirelessly.
  • Category :
    433MHz
  • Release time : 2026-02-13
  • Detailed Description



Main Product Functions

  1. Communication mode: 433MHz
  2. Alarm type: Door contact alarm



Technical Parameters

  • Operating voltage: DC 3V (1 piece CR2450)
  • Operating current: ≤25mA (DC 3V)
  • Quiescent current: ≤4uA (DC 3V)
  • Low voltage alarm: 2.5V±1V
  • Gap distance: ≥20mm
  • Operating temperature: -10℃ ~ +55℃
  • Installation method: Screw fixing or adhesive mounting on door frame
  • Power transmission: ≤13 dBm
  • Wireless frequency: 433MHz/868MHz
