Product

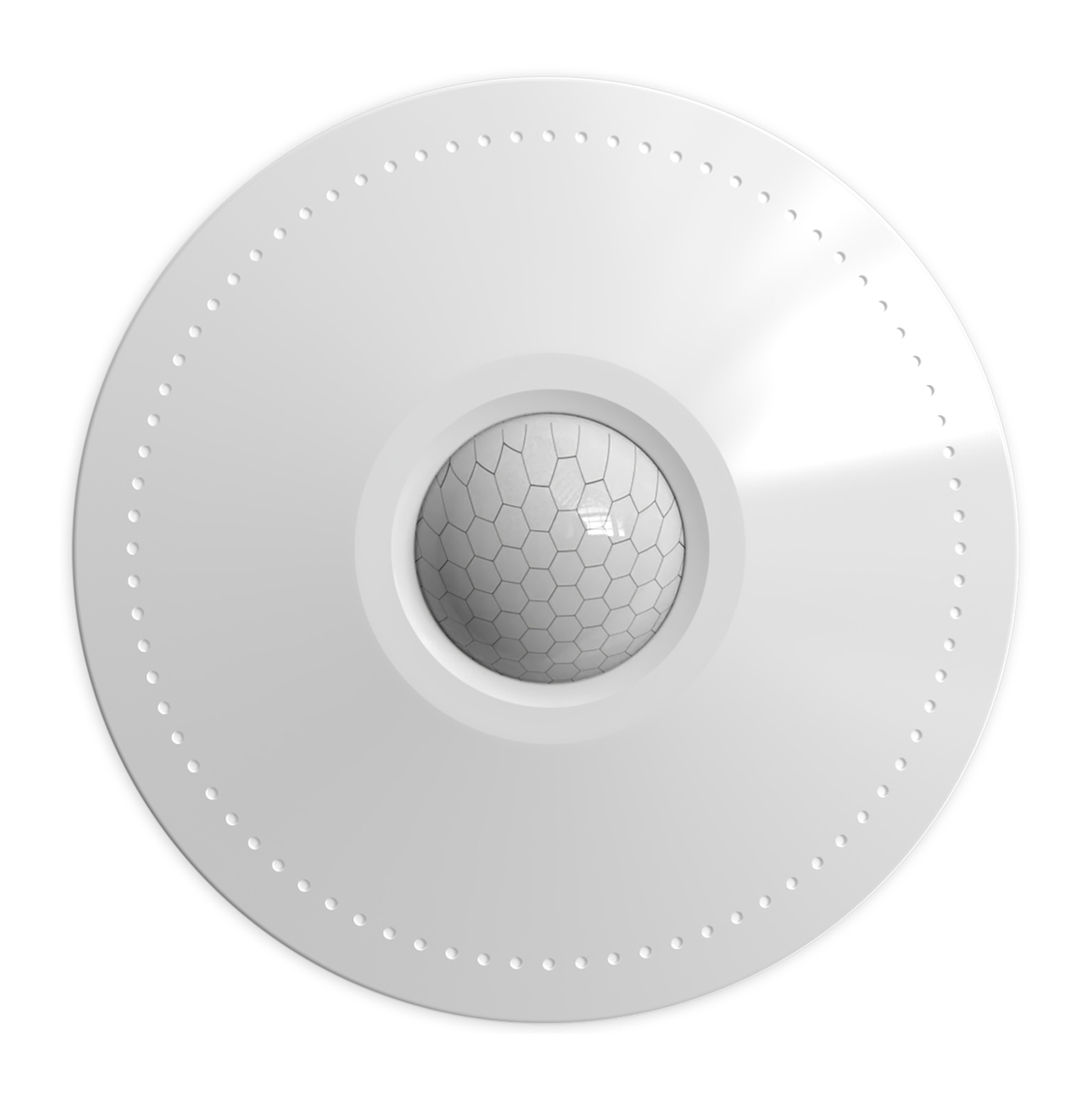

Passive Infrared Detector RT-P51-C

This product detects infrared radiation emitted by the human body via a Fresnel lens and a pyroelectric infrared sensor. It can accurately detect human movement in a large space.

It is suitable for anti-theft alarm detection in security-critical places such as residences, shops, banks and museums.

It can also be used for occupancy detection in offices, classrooms and other scenarios, achieving energy conservation and automated control through linkage with other devices.

In addition, it can be applied in elderly care systems to monitor the activities of the elderly.
  • Category :
    4G Cat.1
  • Release time : 2026-02-13
  • Detailed Description



Main Product Functions

  1. Adopts Cat.1 full-network communication.
  2. Built-in pluggable card design for easy replacement at any time.
  3. Supports remote battery level reporting.
  4. Supports low-voltage alarm function.
  5. Clear operation indication: signal strength indication, signal transmission indication and various operating status indications.
  6. Powerful self-test function: module fault detection, Cat.1 card fault detection, signal transmission failure detection, platform communication fault detection, etc.
  7. Provides 8 working modes, including anti-theft alarm, elderly care and energy management.



Technical Parameters

  • Detection Method: Pyroelectric infrared detection
  • Power Supply Mode: Battery-powered
  • Battery: 2 × AA batteries
  • Working Modes: 8 working modes
  • Installation Height: 3.6m
  • Operating Temperature: -10℃~ +55℃
  • Installation Method: Ceiling-mounted
  • Detection Coverage: 8m in diameter (at 20℃room temperature)
  • Communication: Cat.1
  • Supply Voltage: DC 3V
  • Operating Humidity: <95%RH (non-condensing)
  • Dimensions: Φ116 × 40mm
  • Applications: Anti-theft alarm, elderly care, energy management
