Product

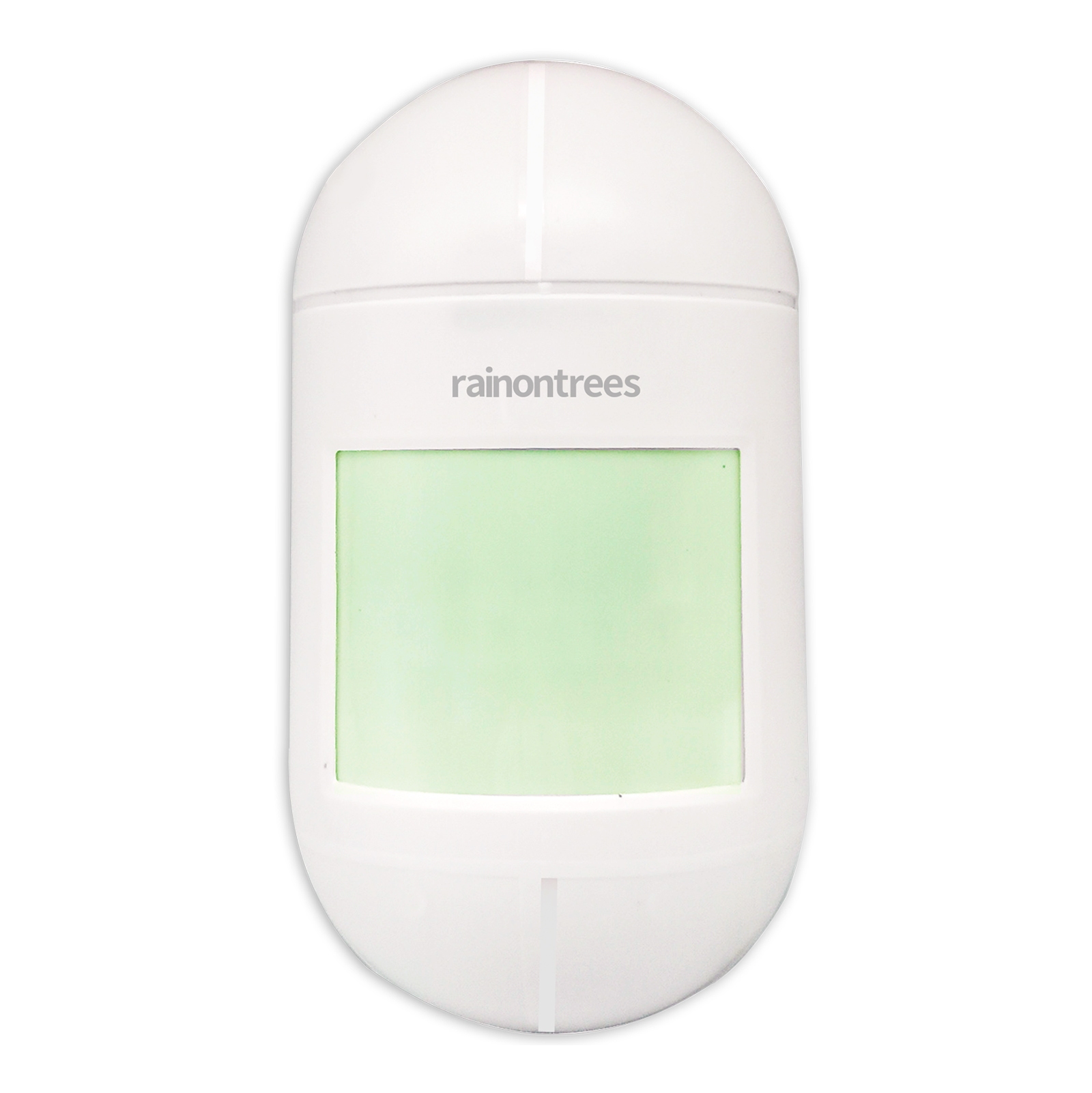

Passive Infrared Detector RT-P22-A433

This product detects infrared radiation emitted by the human body through a Fresnel lens and a pyroelectric infrared sensor.

It can accurately detect human movement in a large space.

It is suitable for anti-theft alarm detection in homes, shops, banks, museums and other security-sensitive places.

It can also be used for occupancy detection in offices, classrooms and other locations, and can link with other equipment to achieve energy saving and automatic control.
  • Category :
    433MHz
  • Release time : 2026-02-13
  • Detailed Description



Main Product Functions

  1. Communication: ASK 433M.
  2. Dual power supply modes: battery power and USB power.
  3. When powered by battery: uses high-performance CR123A lithium battery.
  4. Equipped with tamper alarm function.
  5. External power switch protects the battery during transportation and storage, and allows power-on without opening the cover after installation.
  6. Supports temperature compensation function.



Technical Parameters

  • Communication: ASK 433M
  • Battery Voltage: DC 3V
  • Operating Temperature: -10℃~ +55℃
  • Dimensions: 6137115mm
  • Installation Height: 2.2m
  • Detection Method: Pyroelectric infrared detection
  • Detection Distance: 12m directly ahead (at 20℃room temperature)
  • Battery Type: CR123A lithium-manganese battery
  • Battery Capacity: 1400mAh
  • Operating Humidity: ≤95%RH
  • Installation Method: Wall-mounted
  • Detection Angle: 110°
  • Digital Temperature Compensation: Yes
  • Anti-white-light Interference: Yes
