Magnetic Switch Intrusion Detector RT-W12-A433

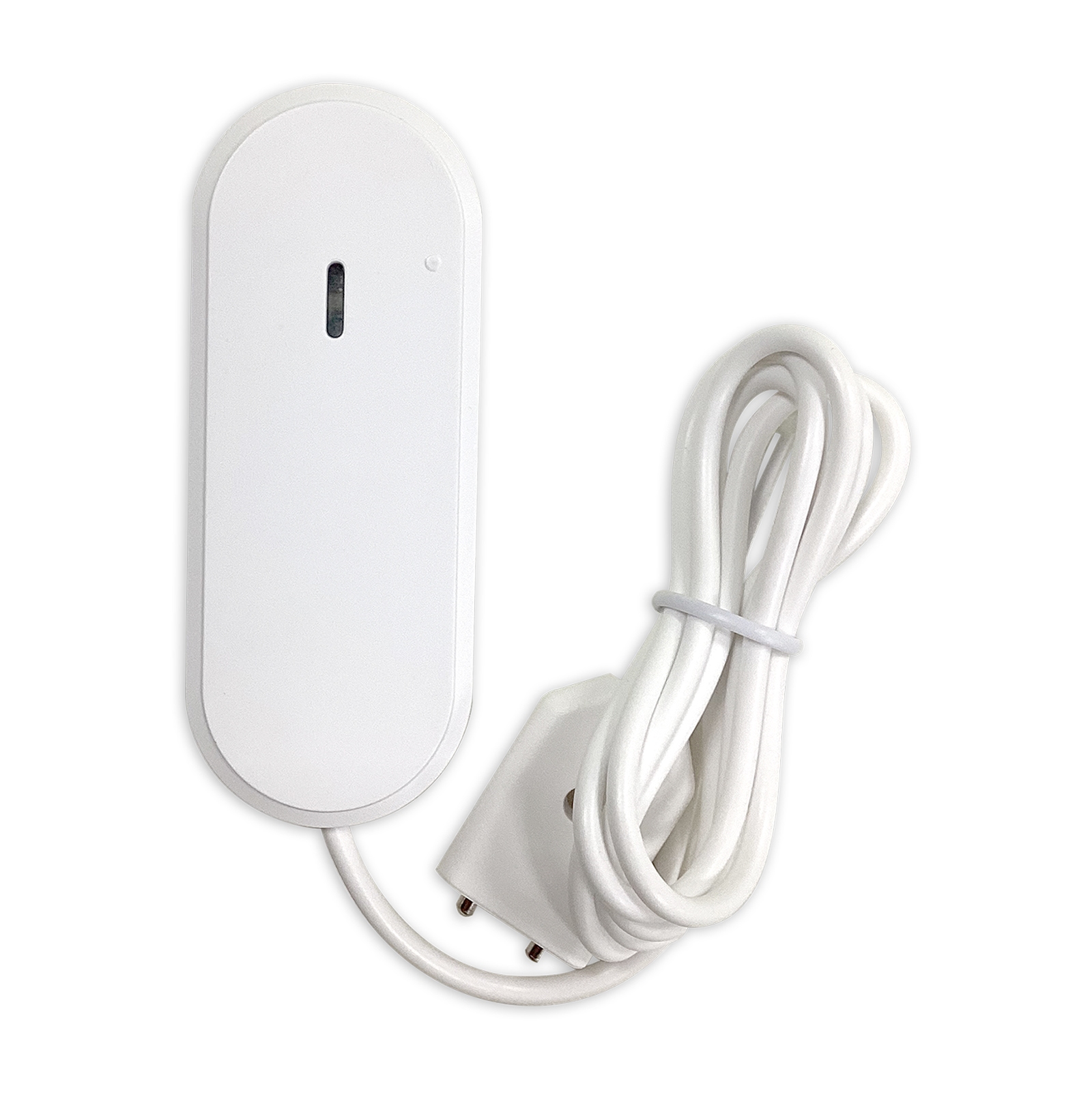

This product adopts ASK 433M communication technology and a split design, with a fully enclosed probe that is waterproof and moisture-proof. Compact and flexible, it can be installed in narrow, enclosed and other harsh environments, while the control host can be placed in an open area for convenient operation and optimal signal transmission. The product is widely applicable for water leakage and overflow detection in basements, computer rooms, hotel kitchens, washrooms and other places.
  • Category :
    433MHz
  • Release time : 2026-02-13
  • Detailed Description

Main Functions

  1. Communication mode: 433MHz
  2. Adopts a split design with the communication unit separated from the probe; the probe cable length is 1 meter or more.


Technical Parameters

Operating voltage: DC 3V (1 CR2450 battery)
Operating current: ≤25mA (DC 3V)
Standby current: ≤4uA (DC 3V)
Low voltage alarm: 2.5V±0.1V
Actuation gap: ≥20mm
Operating temperature: -10℃~+55℃
Installation method: Screw fixation or adhesive mounting
Transmit power: ≤13 dBm
Wireless frequency: 433MHz
Probe: Metal probe
