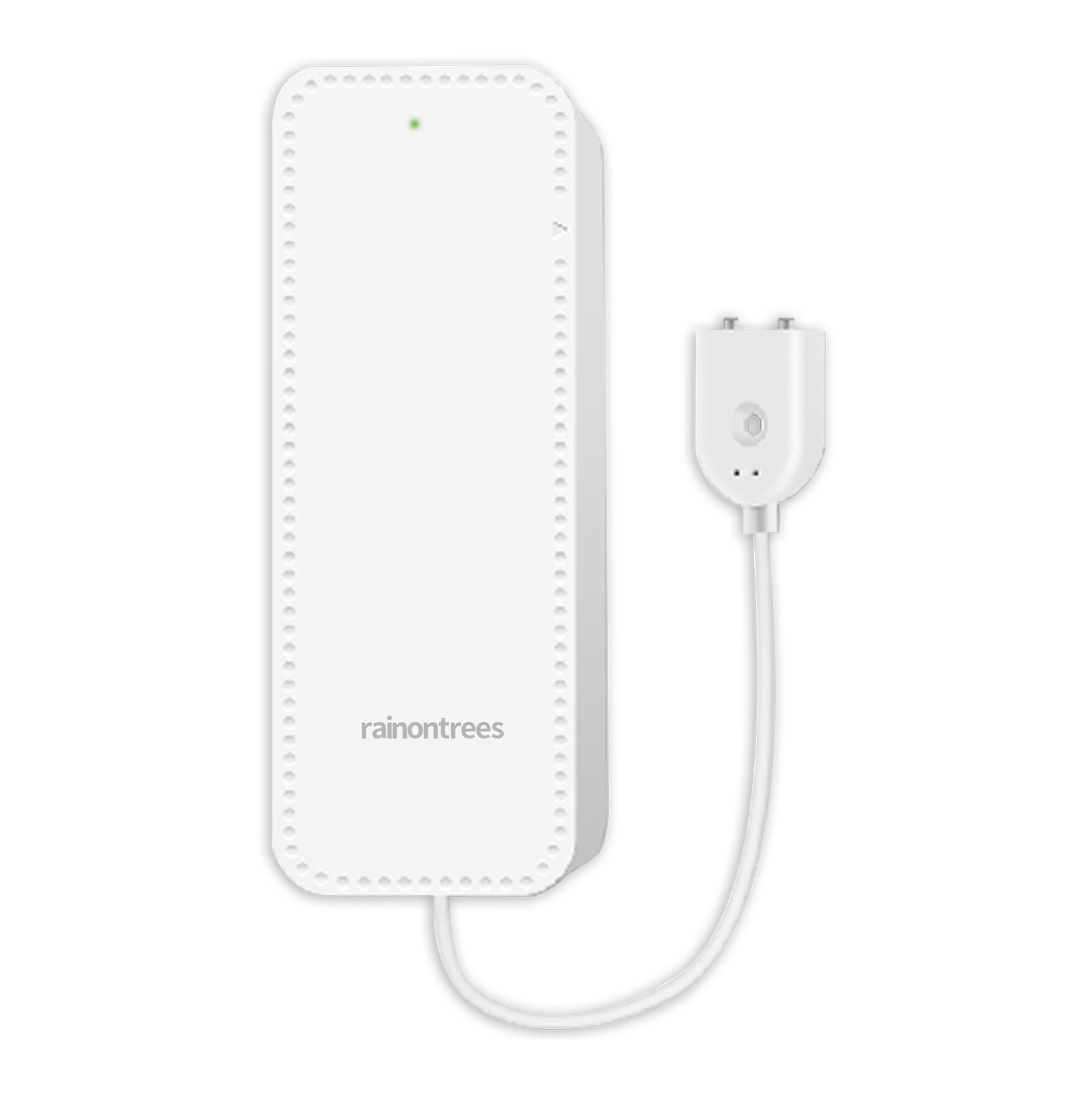

Water Leakage Detector RT-W11-Z1

Overview

This product adopts Tuya Zigbee communication technology and a split design. The probe features a fully enclosed design, which is waterproof and moisture-proof, compact and flexible. It can be installed in harsh environments such as narrow and closed spaces, while the control host can be placed in an open area for convenient operation and optimal signal transmission. The product is designed with a low-power consumption scheme and powered by a high-power lithium battery, ensuring an ultra-long service life. In case of an alarm, it can directly send alerts to the user's mobile phone through the 5G network and management center platform. This product is widely applicable for water leakage and overflow detection in basements, computer rooms, hotel kitchens, toilets and other places.

Main Product Functions

1. Communication method: Tuya Zigbee.
2. Powered by high-performance CR123A lithium battery.
3. Built-in pluggable card design for easy replacement at any time.
4. Supports remote battery level reporting.
5. Supports low-voltage alarm function.
6. Clear operation indication: signal strength indication, signal transmission indication, and various operating status indications of the product.
7. Powerful self-test function: module fault detection, Cat.1 card fault detection, signal transmission failure detection, platform communication fault detection, etc.
8. Flexible cloud platform configuration: various functions of the product can be remotely set through the cloud platform.
9. Split design: the communication part is separated from the probe, with the probe wire length of 1 meter or more.

Technical Parameters

- Communication: Tuya Zigbee

- Operating Voltage: DC 3V

- Quiescent Current: ≤5μA

- Operating Temperature: -10℃ ~ +55℃

- Operating Humidity: ≤95%RH

- Installation Method: Wall-mounted

- Probe: Metal Probe

- Probe Wire Length: 1m

- Battery: CR123A Lithium Battery

- Transmitting Current: 200mA

- Dimensions: 45*13.4*20mm
