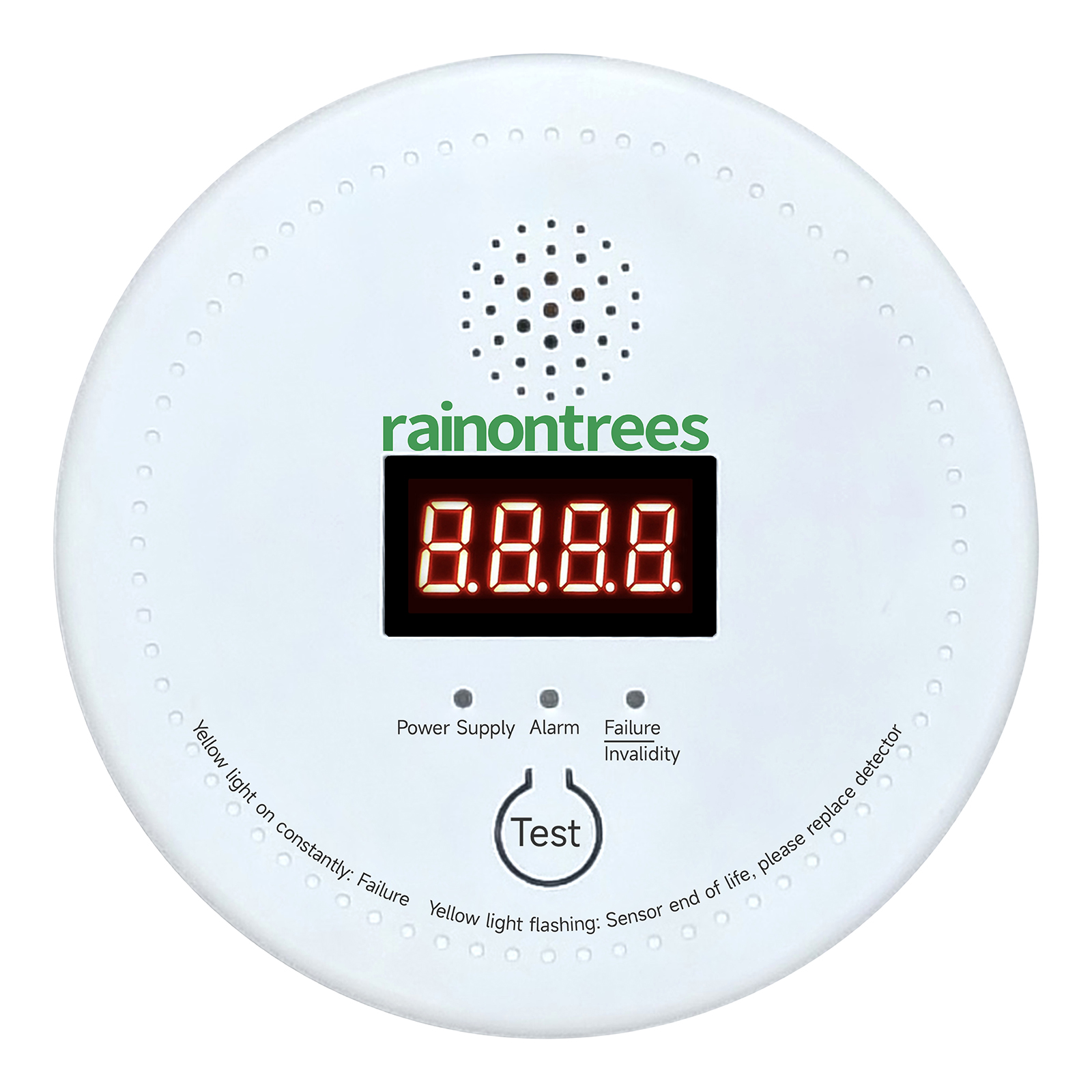

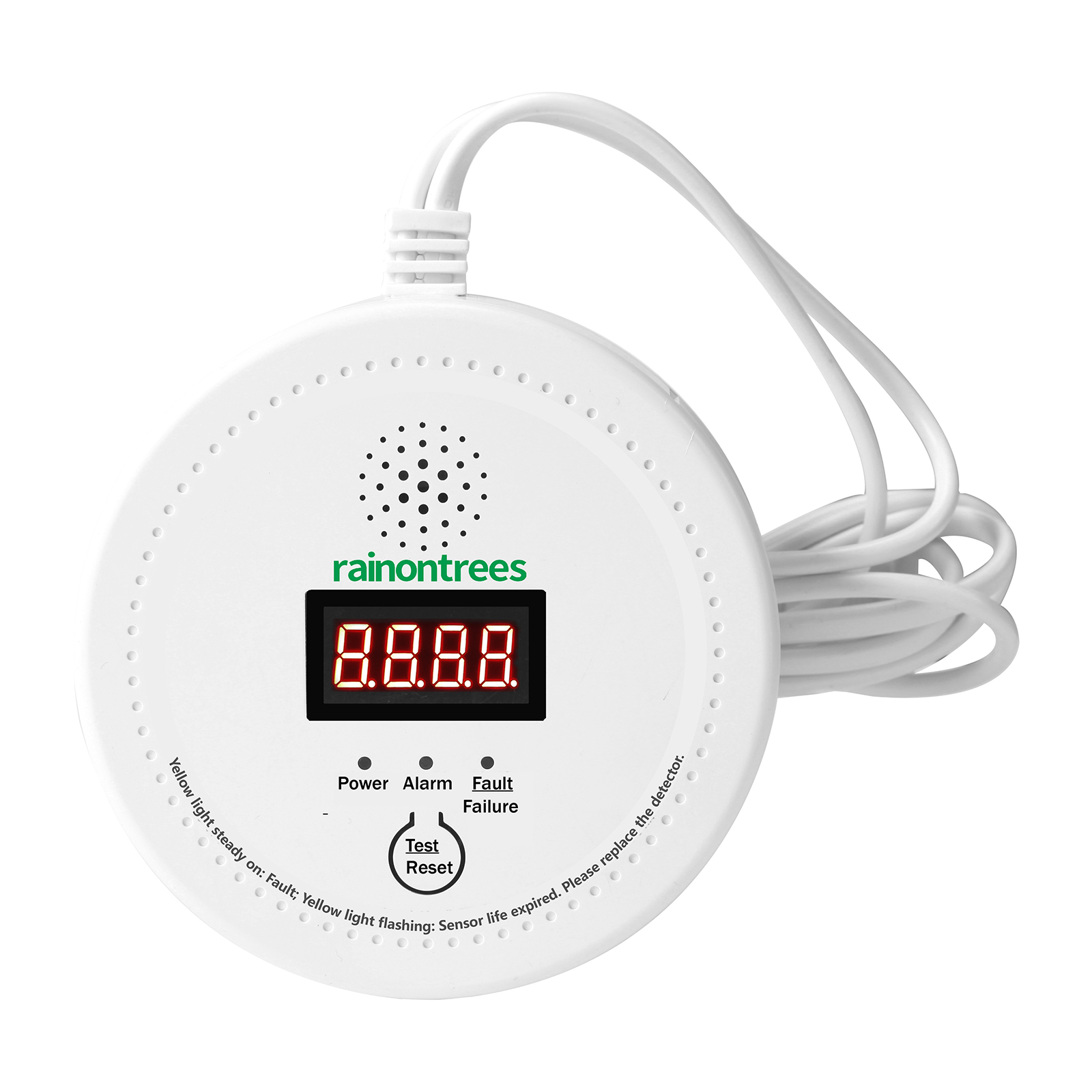

Household Carbon Monoxide Detector JM-RTCO15-C

Main Functions

1. Communication mode: Cat.1 full Netcom communication.
2. Built-in plug-in card for easy replacement.
3. Clear working indication: signal strength indication, signal transmission indication, and various operation status indications of the product.
4. Powerful self-test function: module fault detection, Cat.1 card fault detection, signal transmission failure detection, platform communication fault detection, etc.
5. Flexible cloud platform configuration: remote setting of various product functions via cloud platform.
6. Compatible with both ceiling-mounted and wall-mounted installation.
7. Equipped with clock function and data memory function.
8. Equipped with data export interface.
9. 1-channel relay output.
10. With test report issued by National Quality Inspection and Testing Center for Fire Electronic Products.
11. With fire product certification issued by Certification Center for Fire Products, Ministry of Emergency Management.

Technical Parameters

• Communication mode: Cat.1 full Netcom
• Detected gas: Carbon Monoxide (CO)
• Alarm concentration: 200×10⁻⁶(volume fraction)
• Measuring range: 0–500×10⁻⁶(volume fraction)
• Operating temperature: -10 ~ +55 ℃
• Installation: Ceiling-mounted / Wall-mounted
• Dimensions: Φ104 × 7 mm
• Power consumption: ≤2W (normal monitoring); ≤3W (alarm status)
• Operating voltage: AC 220V/50Hz
• Alarm sound level: >70dB (at 1 meter directly in front)
• Sampling method: Natural diffusion
• Operating humidity: ≤95%RH (non-condensing)
• Driving capacity: AC 220V/3A or DC 30V/3A (relay normally open output)
• Sensor service life: 3 years
• Executive standard: GB 15322.2-2019
