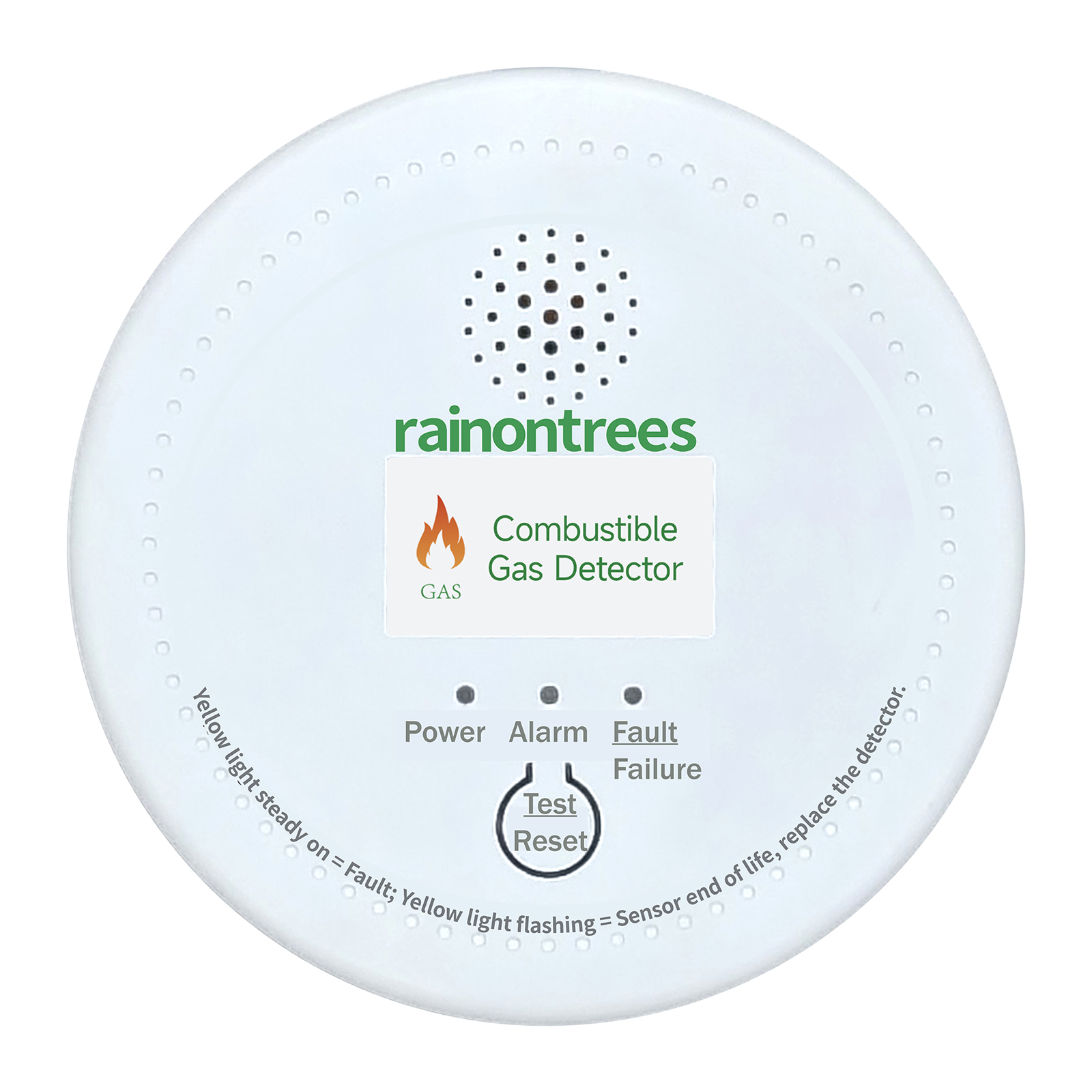

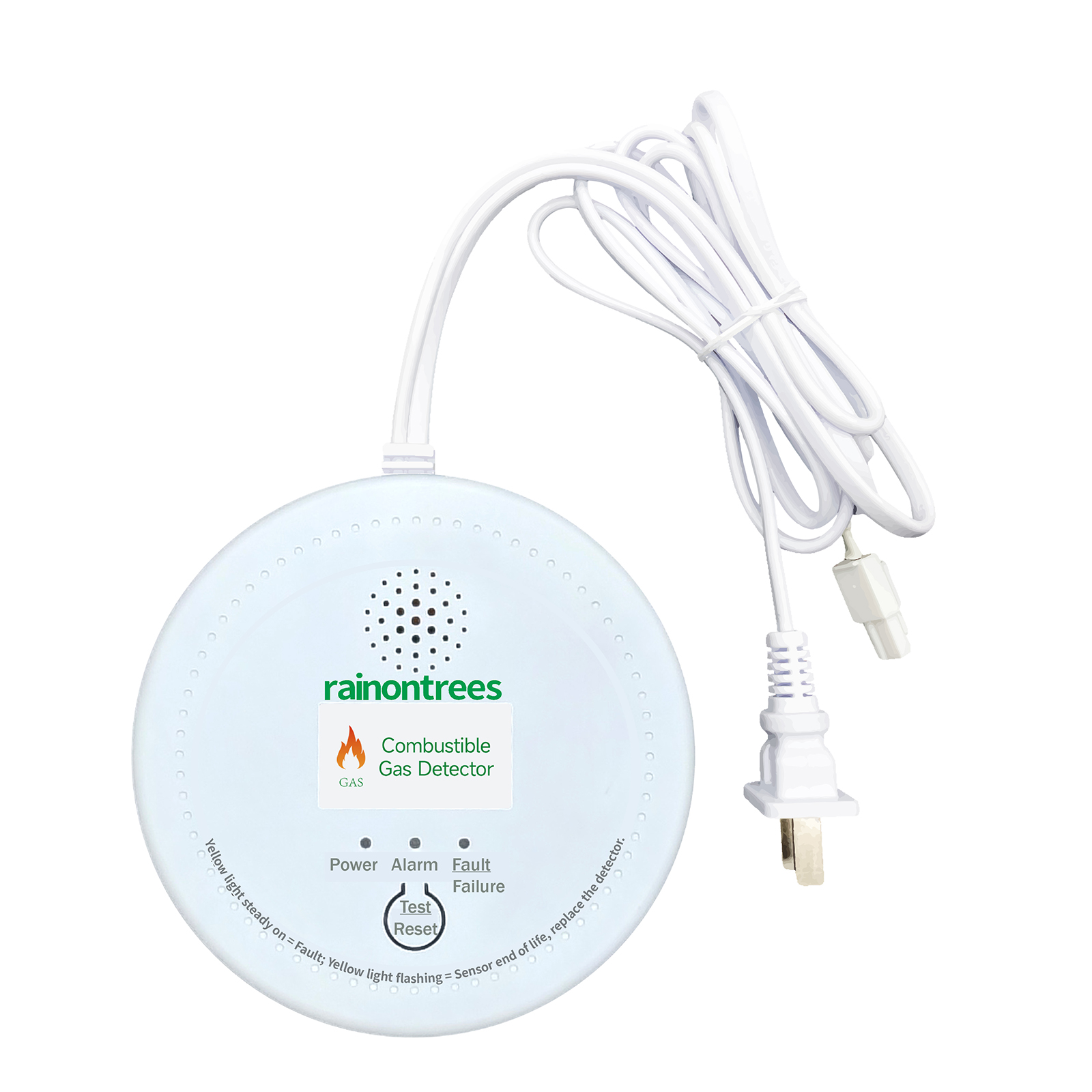

Household Combustible Gas Detector JT-RTG15

Main Functions

Detects leakage of natural gas (CH₄).

Supports connection to gas shut-off manipulator or solenoid valve.

Equipped with clock function and data memory function.

Provided with data export interface.

Possesses test report issued by National Quality Inspection and Testing Center for Fire Electronic Products.

Possesses fire product certification issued by Certification Center for Fire Products of Ministry of Emergency Management.

Communication method: ASK 433M wireless communication.

Technical Specifications

Detected Gas: Natural Gas (CH₄)

Operating Voltage: AC 220V / 50Hz

Static Current: ＜ 100mA

Alarm Sound Pressure Level: ≥ 70dB (at 1 meter directly in front)

Alarm Concentration: 8 LEL ± 3 LEL

Sampling Method: Natural Diffusion

Communication Method: ASK 433M Communication

Driving Capacity: 12V (Manipulator: continuous 200mA; Solenoid Valve: pulse 2A)

Operating Temperature: -10 ~ +55 ℃

Operating Humidity: ＜ 95% RH (non-condensing)

Installation: Wall Mount / Ceiling Mount

Dimensions: 104 × 31.7 mm
