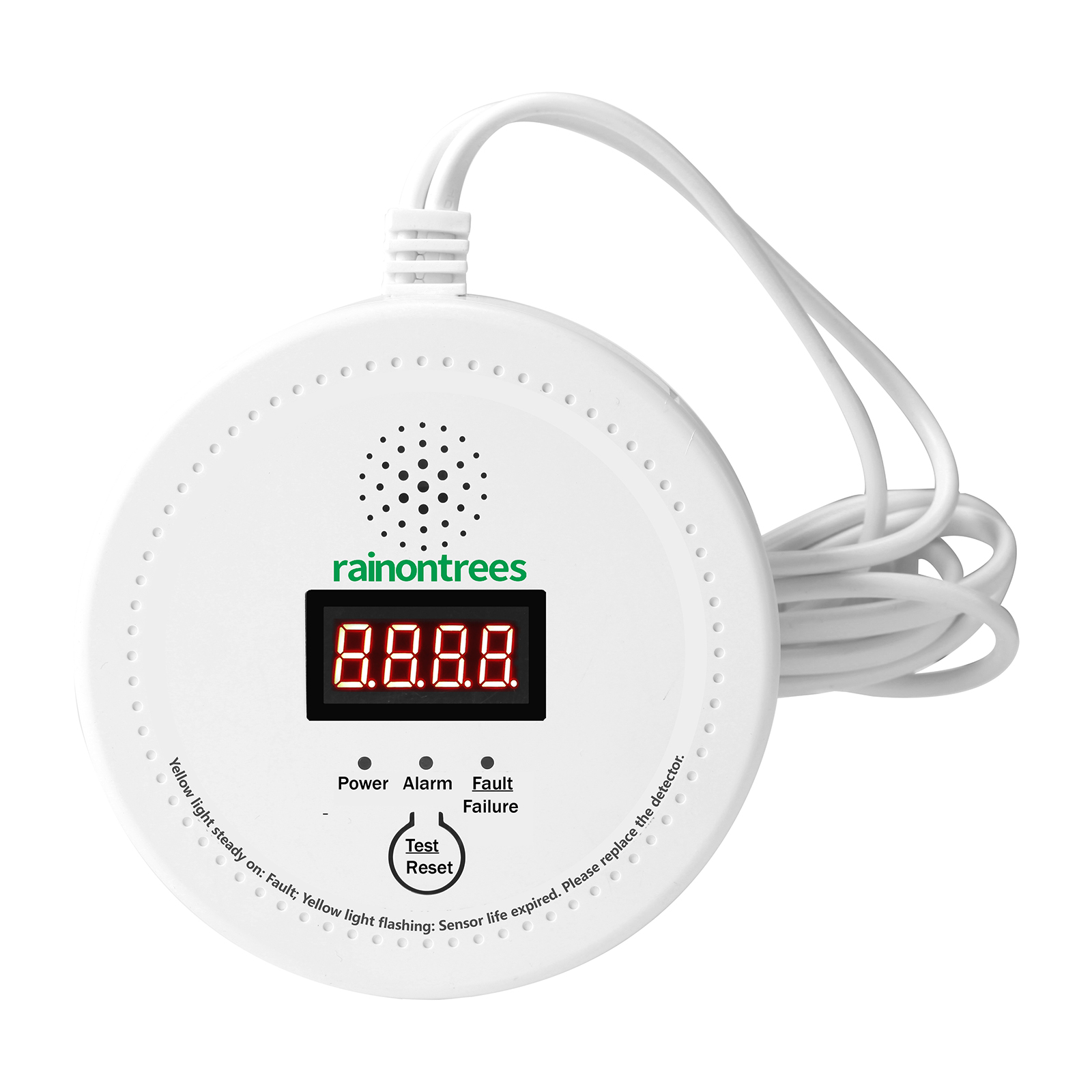

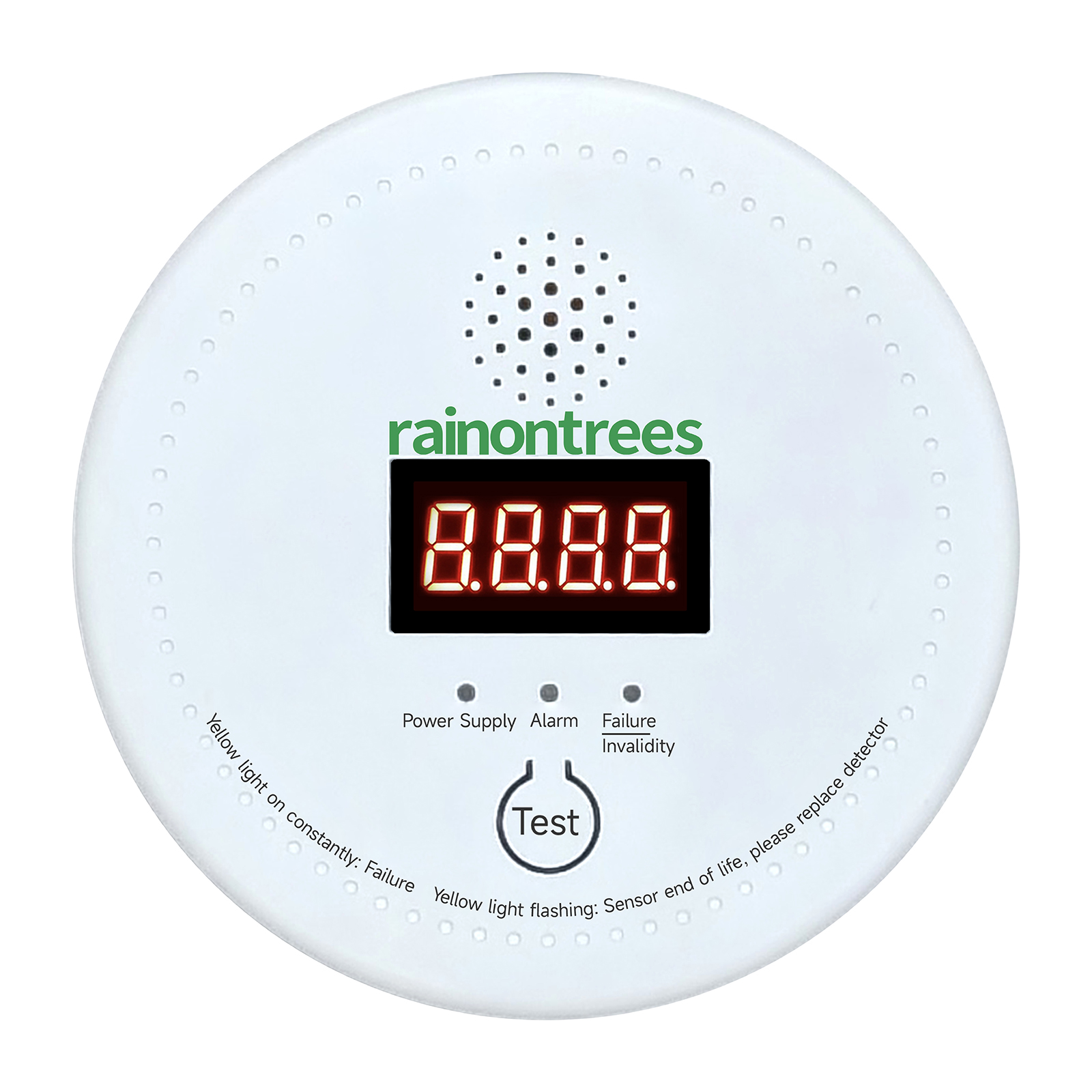

Household Carbon Monoxide Detector JM-RTCO15

Carbon monoxide is produced when carbon-containing materials such as coal, petroleum and wood are burned with insufficient oxygen. For example, incomplete combustion may occur in household heating equipment, kitchen stoves, industrial coal-fired devices and other scenarios, which will generate carbon monoxide.

Carbon monoxide is a toxic gas. When its concentration exceeds a certain level, it will pose a serious hazard to human health.

This product can monitor the concentration of carbon monoxide in the air and give an alarm in time when the concentration exceeds the limit, so as to prevent risks in advance.
  • Detailed Description



Main Functions

  1. Detect whether the concentration of carbon monoxide in the air exceeds the limit.
  2. Compatible with ceiling-mounted and wall-mounted installation.
  3. Equipped with clock function and data memory function.
  4. Provided with data export interface.
  5. 1-channel relay output.



Technical Specifications

  • Detected Gas: Carbon Monoxide (CO)
  • Alarm Concentration: 200×10⁻⁶(Volume Fraction)
  • Measuring Range: 0~500×10⁻⁶(Volume Fraction)
  • Operating Temperature: -10~+55℃
  • Installation Method: Ceiling-mounted / Wall-mounted
  • Dimension: Ф104×7mm
  • Power Consumption: ≤2W (Normal Monitoring); ≤3W (Alarm State)
  • Operating Voltage: AC 220V/50Hz
  • Alarm Volume: >70dB (at 1 meter directly in front)
  • Sampling Method: Natural Diffusion
  • Operating Humidity: ≤95%RH
  • Driving Capacity: AC 220V/3A or DC 30V/3A (Relay NO Output Mode)
  • Sensor Life: 3 Years
