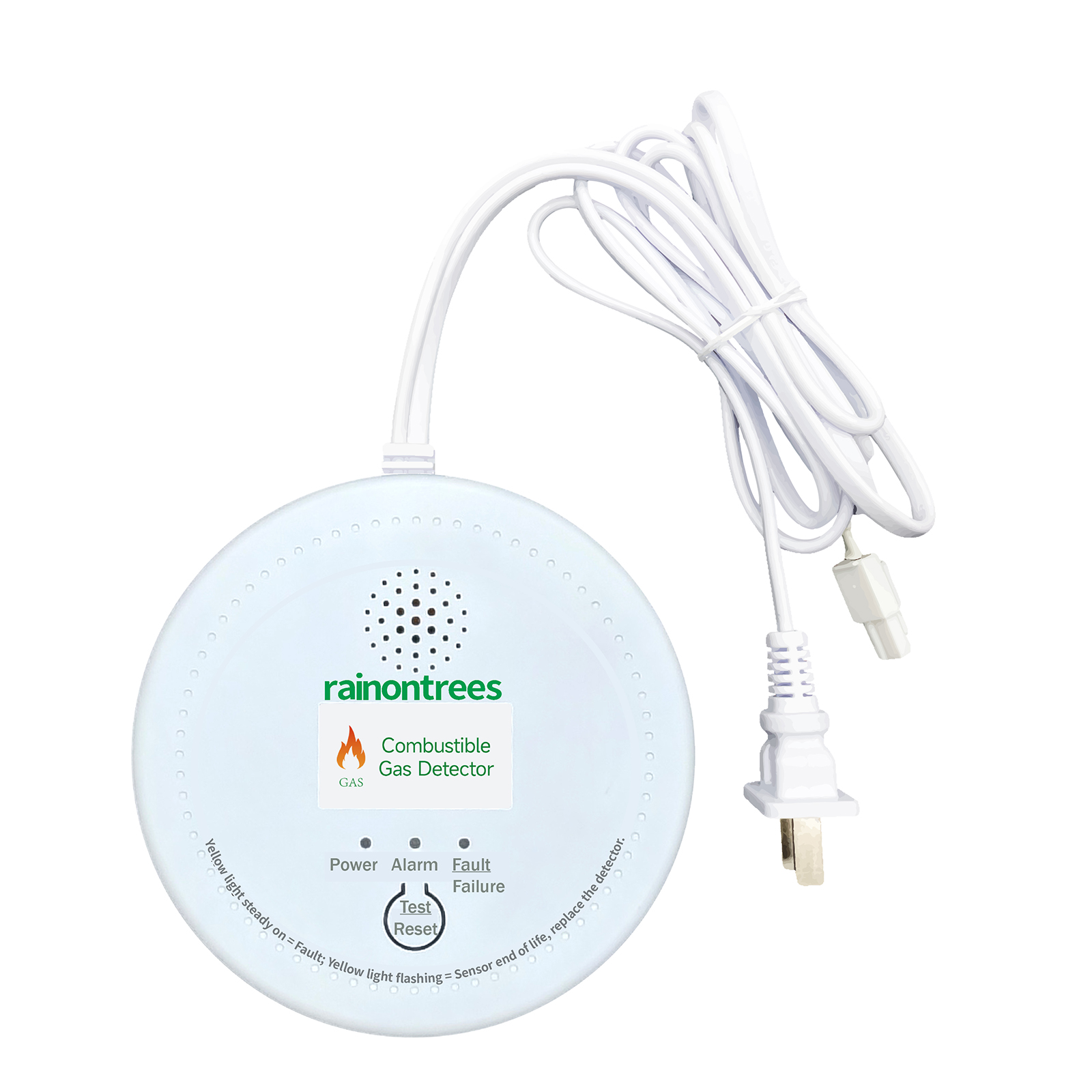

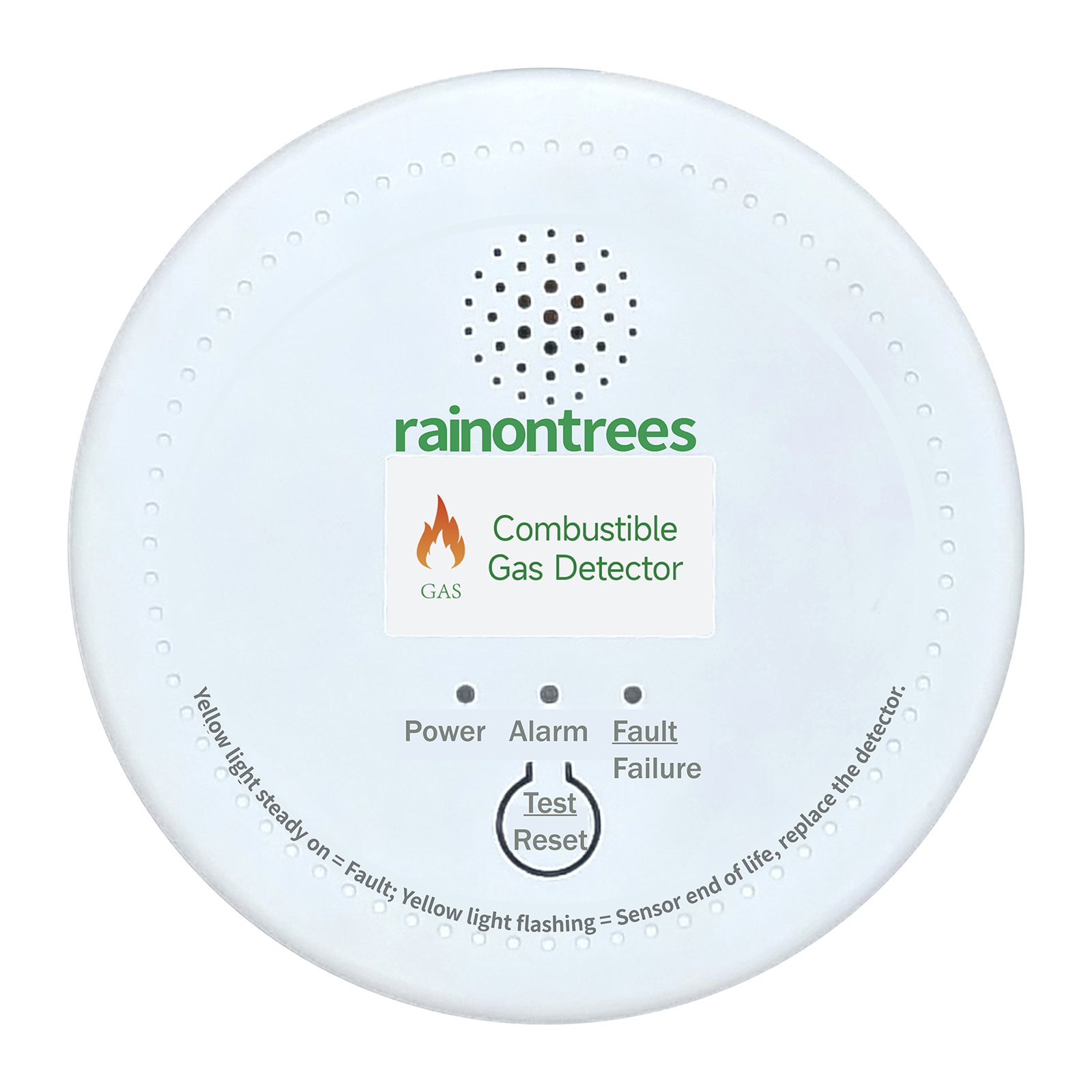

Household Combustible Gas Detector JT-RTG15

Main Functions

1. Detects leakage of natural gas (CH₄).
2. Supports connection with gas shut-off manipulators or solenoid valves.
3. Equipped with clock function and data memory function.
4. Provided with a data export interface.
5. Possesses a test report issued by the National Quality Inspection and Testing Center for Fire Electronic Products.
6. Possesses a fire product certification issued by the Certification Center for Fire Products, Ministry of Emergency Management.

Technical Specifications

• Detected Gas: Natural Gas (CH₄)
• Operating Voltage: AC 220V/50Hz
• Static Current: ＜ 100mA
• Alarm Sound Pressure Level: ≥ 70dB (at 1 meter directly in front)
• Alarm Concentration: 8 LEL ± 3 LEL
• Sampling Method: Natural Diffusion
• Driving Capacity: 12V (Manipulator: continuous 200mA; Solenoid Valve: pulse 2A)
• Operating Temperature: -10 ~ +55℃
• Operating Humidity: ＜ 95% RH
• Installation Method: Wall-mounted / Ceiling-mounted
• Dimensions: 104 × 7 mm
