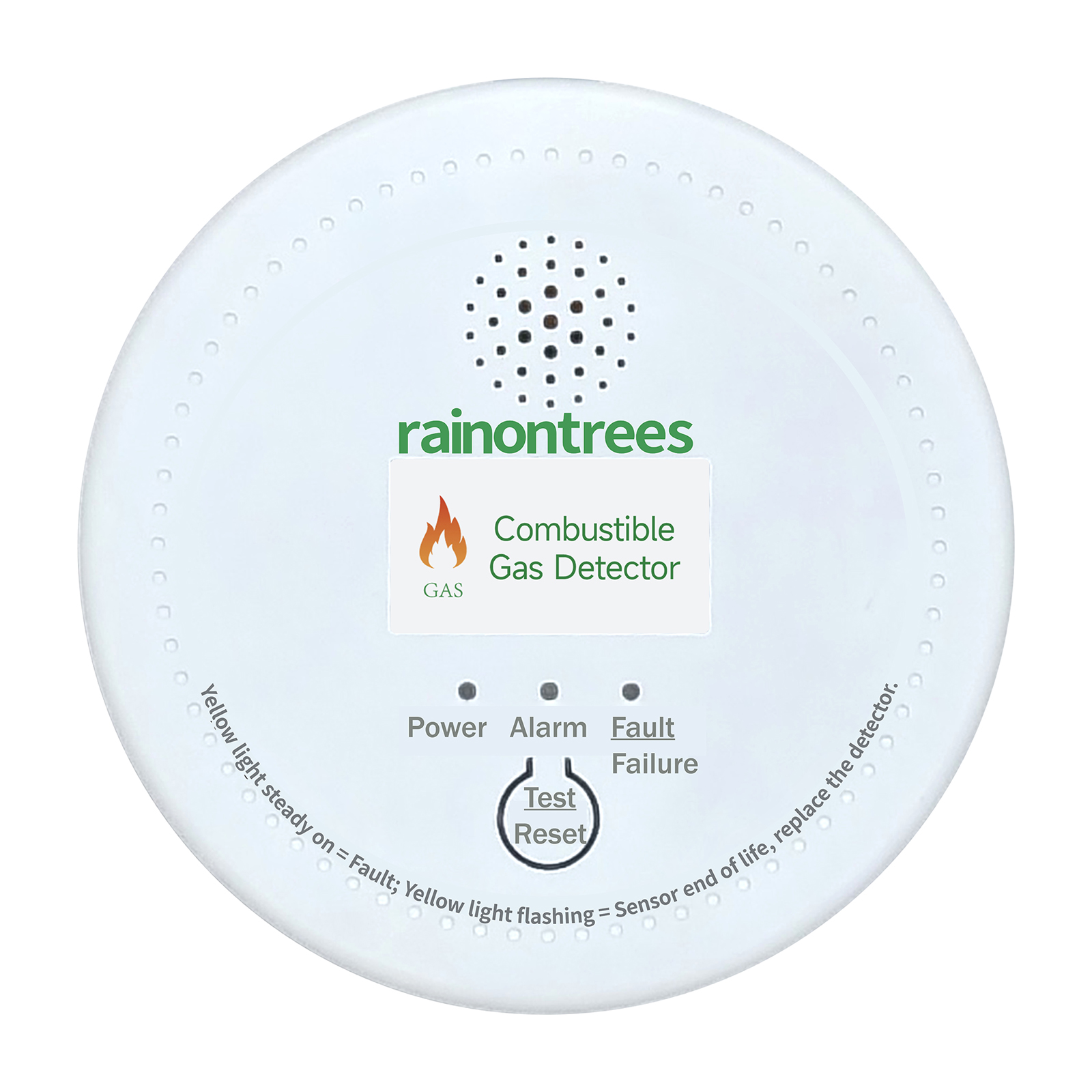

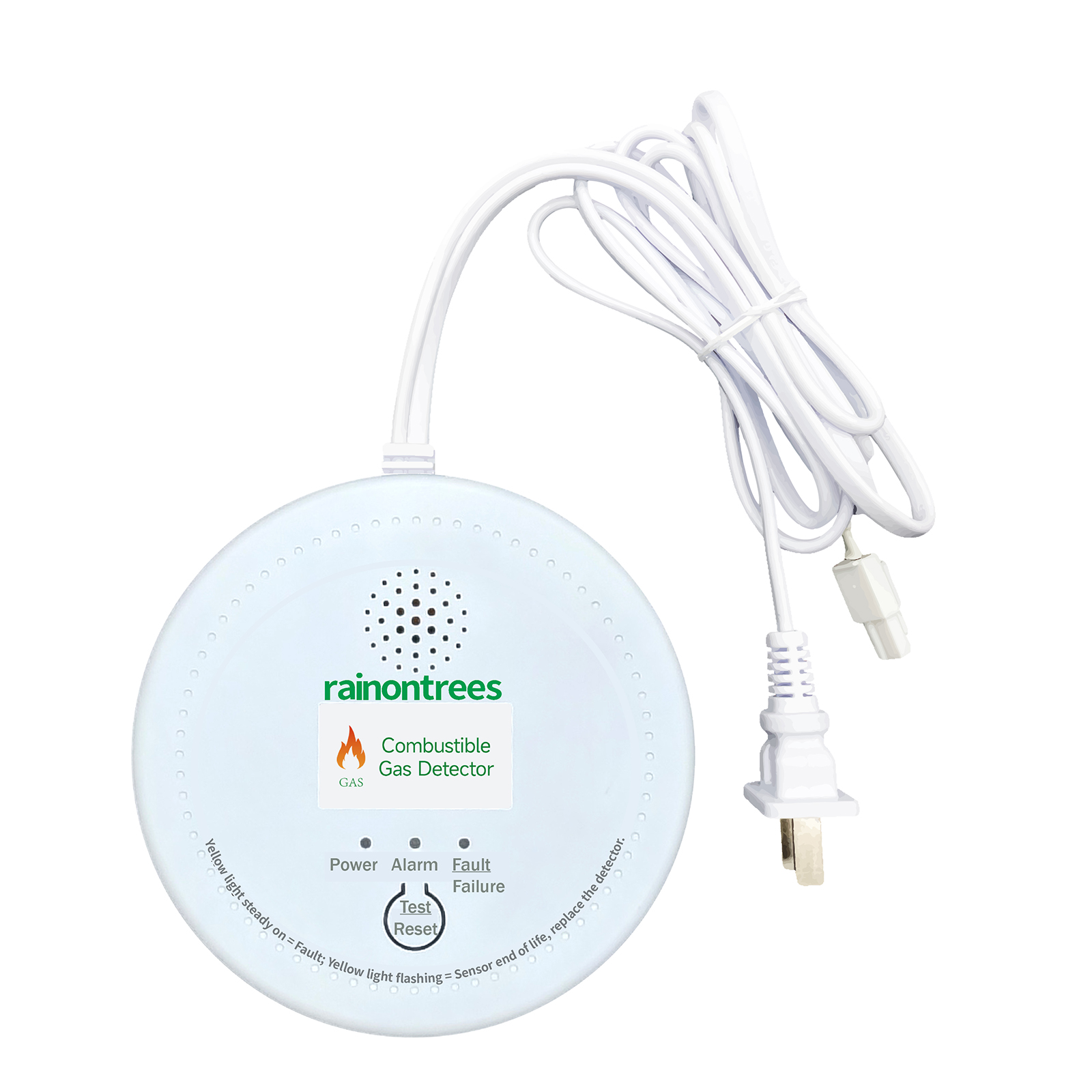

Household Combustible Gas Detector JT-RTG17-Z1

Main Product Functions

1. Communication mode: Tuya ZigBee
2. Clear operation indication: signal strength indication, signal transmission indication, and indication of various operating statuses.
3. Comprehensive self-test function: including module fault detection, Tuya ZigBee fault detection, signal transmission failure detection, and cloud platform communication fault detection.
4. Flexible cloud platform configuration: remote setting of various product functions via the cloud platform.
5. Equipped with clock function and memory function.
6. Equipped with data export interface.
7. Supports connection to gas manipulators or solenoid valves.
8. Provided with test report issued by the National Fire Electronic Product Quality Inspection and Testing Center.
9. Provided with fire product certification issued by the Fire Product Certification Center of the Ministry of Emergency Management.
10. Possesses Network Access License for Telecommunication Equipment.
11. Possesses Type Approval Certificate for Radio Transmitting Equipment.

Technical Parameters

• Communication mode: Tuya ZigBee
• Detected gas: Natural Gas (CH4)
• Operating voltage: AC 220V/50Hz
• Static current: ＜ 100mA
• Alarm sound pressure: ≥ 70dB (at 1 meter directly in front)
• Alarm concentration: 8 LEL ± 3 LEL
• Sampling method: Natural diffusion
• Driving capacity: 12V (Manipulator: continuous 200mA; Solenoid valve: pulse 2A)
• Operating temperature: -10 ~ +55℃
• Operating humidity: ＜ 95%RH
• Installation: Wall-mounted / Ceiling-mounted
• Dimensions: 104 × 31.7 mm
