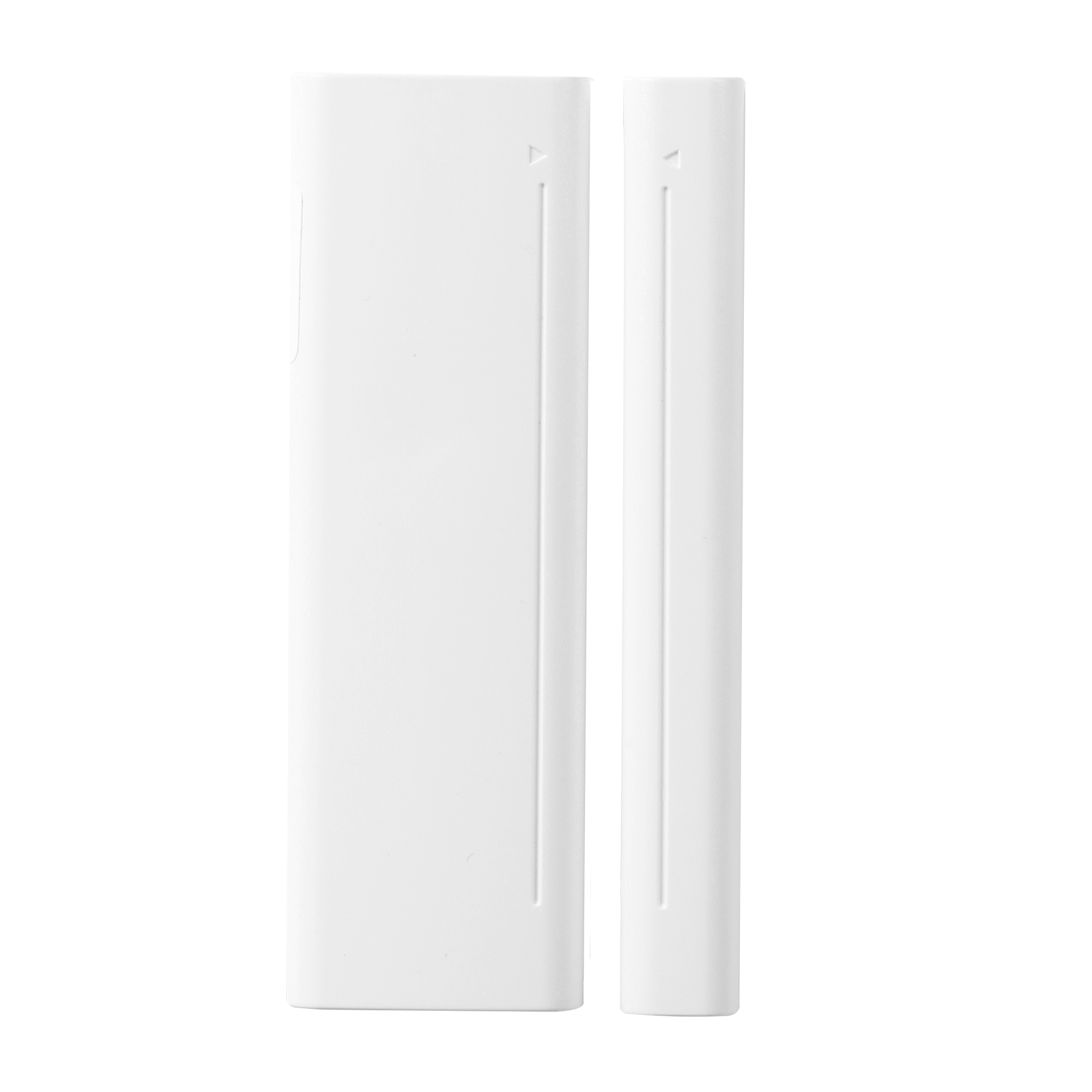

Magnetic Contact Intrusion Detector LADS-MC01-C

This product is widely used to detect the open/close status and relative displacement between two objects on various doors, windows and safes.

It is extensively applied in quarantine sites, residential households, banks, museums, prisons, schools, office buildings, base stations and other places.

An alarm is triggered by detecting the closing and separation between the main unit and the magnetic pole.
  • Category :
    4G Cat.1
  • Release time : 2026-02-13
  • Detailed Description



Main Product Functions

  1. Communication mode: Cat.1 full-network communication.
  2. Built-in pluggable card design for convenient replacement at any time.
  3. Powered by a high-performance CR123A lithium battery.
  4. Alarm types: Door contact alarm, under-voltage alarm, tamper alarm.
  5. Clear operation indication: Signal strength indication, signal transmission indication, and various operating status indications.
  6. Powerful self-test function: Module fault detection, Cat.1 card fault detection, signal transmission failure detection, platform communication fault detection, etc.
  7. Flexible cloud platform configuration: Remote configuration of various functions via the cloud platform.
  8. Supports remote battery level reporting.
  9. Non-porous housing design, waterproof and suitable for outdoor installation.



Technical Parameters

  • Power supply voltage: DC 3V
  • Quiescent current: ≤5μA
  • Operating temperature: -10℃~ +55℃
  • Operating humidity: ≤95%RH
  • Installation method: Wall-mounted
  • Magnetic induction distance: 20mm
