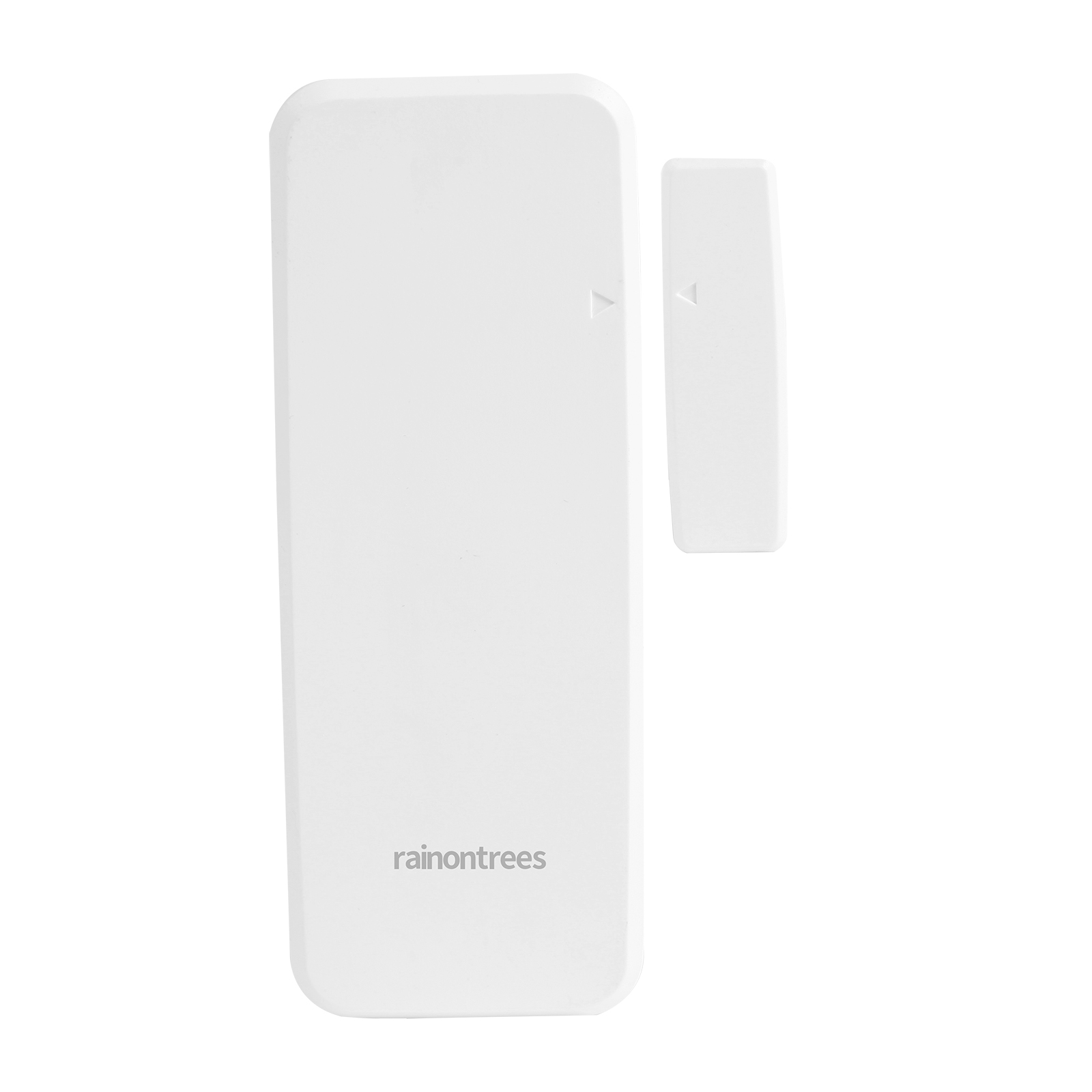

Magnetic Switch Intrusion Detector RT-M15-C

This product is widely used on various doors, windows and safes to detect the open/close status and relative displacement between two objects.

It is extensively applied in quarantine sites, residential households, banks, museums, prisons, schools, office buildings, base stations and other places.

An alarm is triggered by detecting the closing and separation between the main unit and the magnetic pole.
  • Category :
    4G Cat.1
  • Release time : 2026-02-13
  • Detailed Description



Main Product Functions

  1. Communication mode: Cat.1
  2. Built-in pluggable card design for easy replacement at any time.
  3. Powered by high-performance CR123A lithium battery.
  4. Alarm types: Door contact alarm, under-voltage alarm, tamper alarm.
  5. Clear working indication: Signal strength indication, signal transmission indication, and various operating status indications.
  6. Powerful self-test function: Module fault detection, NB-IoT card fault detection, signal transmission failure detection, platform communication fault detection, etc.
  7. Flexible cloud platform configuration: Remote setting of various product functions via the cloud platform.
  8. Supports remote battery level reporting.
  9. Non-porous housing design, resistant to water spray, rain and moisture.
  10.

Technical Parameters

  • Power supply voltage: DC 3V
  • Quiescent current: ≤5uA
  • Operating temperature: -10℃ ~ +55℃
  • Operating humidity: ≤95%RH
  • Installation method: Wall-mounted
  • Magnetic induction distance: 20mm
  • Main unit dimensions: 105*39.5*23mm
  • Magnetic pole dimensions: 45*13.4*20mm
  • Communication mode: Cat.1
