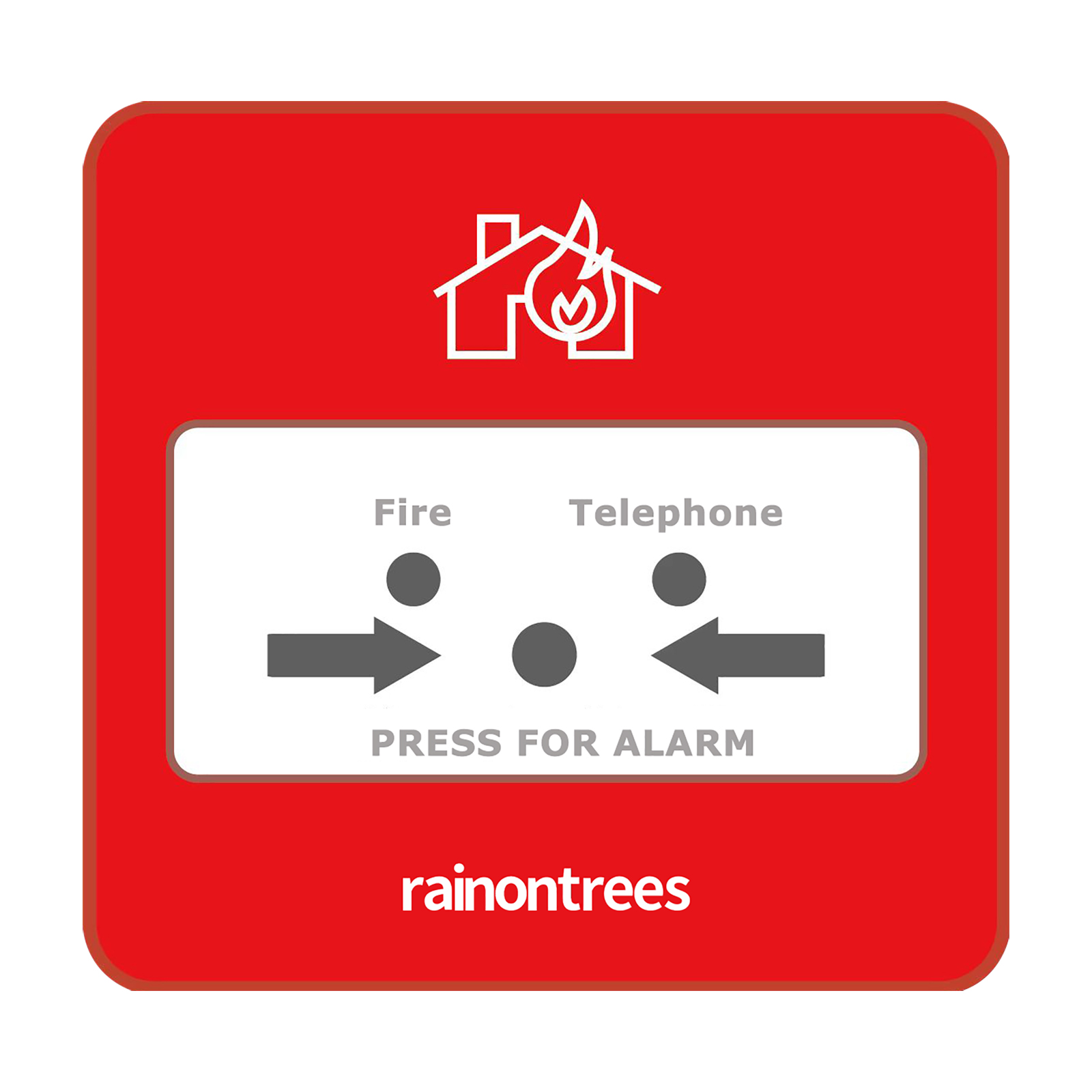

Emergency Button RT-E19-C

This product is an easy-to-use and practical fire manual alarm, featuring functions such as one-key alarm, tamper alarm, low battery detection, and signal strength detection. In case of an alarm, it can notify users and supervisors of the alarm via phone calls, text messages, public accounts and other methods through IoT communication technology and the cloud platform. It can be widely applied in factories, warehouses, hospitals, elderly care, personal homes and other occasions.

Category :
4G Cat.1
Release time : 2026-02-13

Inquiry

Detailed Description

Main Product Functions

Communication method: Cat.1 full-network communication.
Built-in pluggable card for easy replacement.
Battery specification: 1 CR14505 lithium-manganese battery.
Alarm methods: button alarm, pull-cord alarm (optional function), under-voltage alarm, tamper alarm.
Clear operation indication: signal strength indication, signal transmission indication, and various operating status indications of the product.
Powerful self-test function: module fault detection, Cat.1 card fault detection, signal transmission failure detection, platform communication fault detection, etc.
Flexible cloud platform configuration: various functions of the product can be remotely set through the cloud platform.
Installation method: wall-mounted or standard 86-box installation.

Technical Parameters

- Communication: Cat.1

- Battery Voltage: DC 3V

- Operating Current: ≤460mA

- Operating Temperature: -10℃ ~ +55℃

- Dimensions: 93*93*30mm

- Alarm Trigger Methods: Button Alarm, Pull-Cord Alarm (Optional)

- Battery Specification: CR14505 Lithium-Manganese Battery

- Quiescent Current: ≤10μA

- Operating Humidity: ≤95%RH

- Installation Method: Wall-mounted / Standard 86-box
